Technical sheet
/ RTTE25

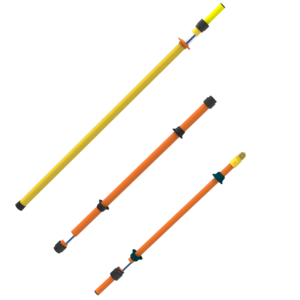

Insulating Pole
See online technical sheet
/ Standards
EN 50508
CEI 60855-1
ASTM F711
/ Use
Insulated pole for performing voltage absence verification (VAT) operations.
This equipment is designed for the safe lockout of all networks, whether AC or DC.
Lightweight, portable, and extremely robust. Can be used in a wide range of temperatures (-25 to 55°C) and indoors or outdoors.
The length of the shaft, defined by a hand guard, ensures a good grip on the pole.
RTTE insulating pole in 1 section for low voltages up to 36kV.
2 skirts per section (excluding shaft and RTTE63 terminal element)
Physical hand guard
Shaft with grip sleeve

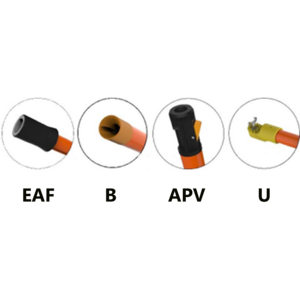

Enveloping cap at the lower end

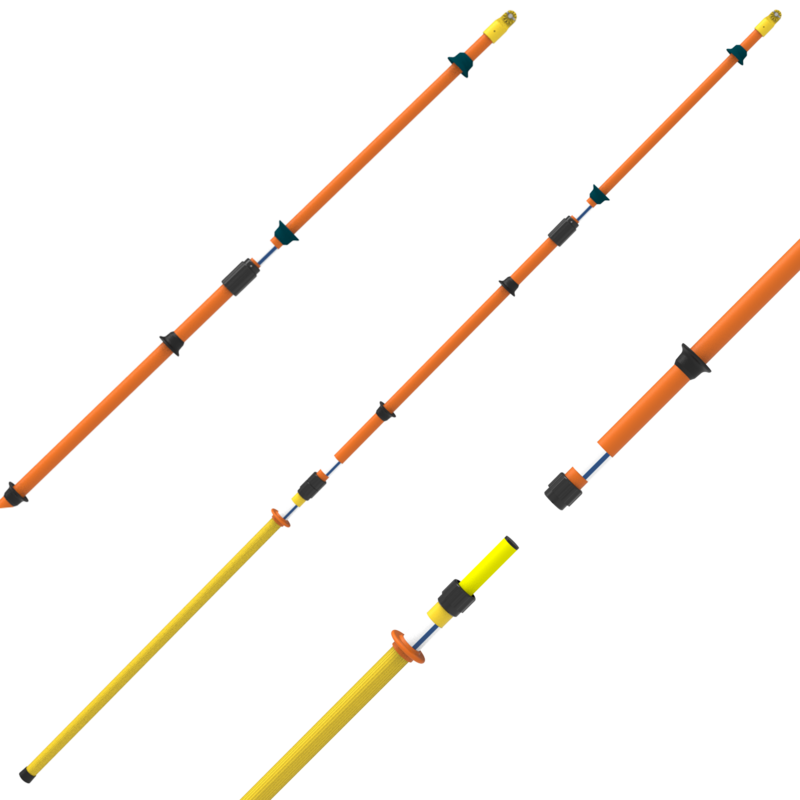

Extensions:
RE115: 1.5 m, 1.2 kg
RE165: 1.65 m, 1.65 kg
RE215: 2.15 m, 2 kg
This equipment is designed for the safe lockout of all networks, whether AC or DC.
Lightweight, portable, and extremely robust. Can be used in a wide range of temperatures (-25 to 55°C) and indoors or outdoors.
The length of the shaft, defined by a hand guard, ensures a good grip on the pole.
RTTE insulating pole in 1 section for low voltages up to 36kV.
2 skirts per section (excluding shaft and RTTE63 terminal element)
Physical hand guard
Shaft with grip sleeve
Enveloping cap at the lower end
Extensions:
RE115: 1.5 m, 1.2 kg
RE165: 1.65 m, 1.65 kg
RE215: 2.15 m, 2 kg
/ Areas of activity
Electrical distribution
Industry
Substation
Technical sheet
/ Technical specifications
Pole kind
:
Extendable
Total length (m)
:
1.6
Pipe diameter (mm)
:
39
Insulating length (m)
:
0.95
Pole weight (kg)
:
1.3
Cover reference
:
H10
Pole finition ( terminal element)
:
Polish
pole-finition-inferior
:
Polish
Pipe kind
:
Rounded
Pole material
:
Composite foam glass fiber
Telescopics pole material
:
Composite foam glass fiber
