Technical sheet
/ RBCL0 600x600

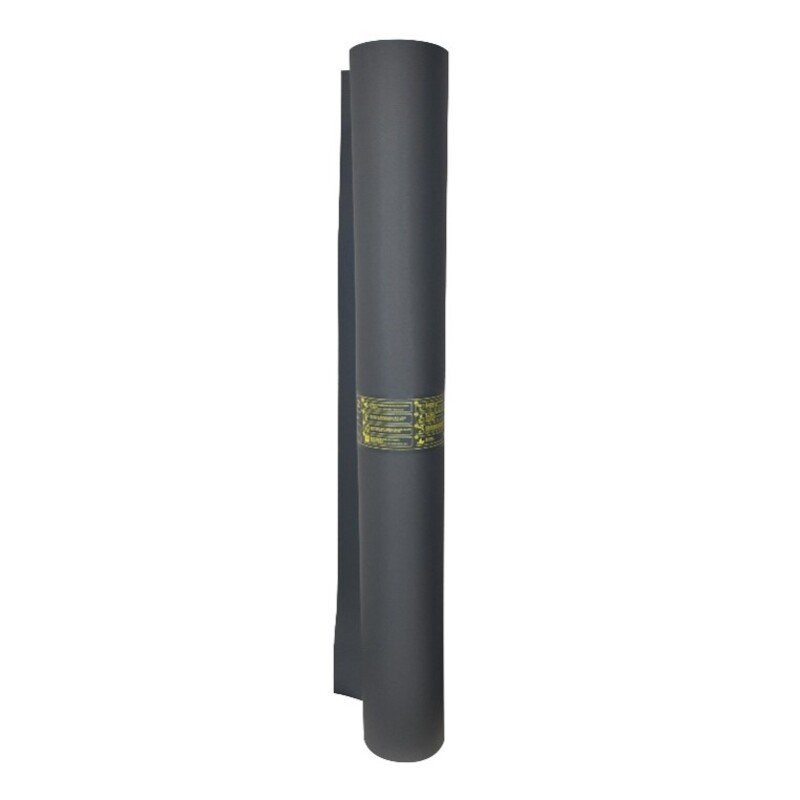

Insulating mat class 0
See online technical sheet
/ Standards
CEI 61111
:
Class 0
/ Use
In addition to Personal Protective Equipment, the mat isolates the operator from the ground so that an electric current is not passed through it in the event of direct contact or step voltage.
The choice of the CLASS of the mat must be determined according to the maximum nominal voltage of the network (annex A of IEC 61111).
Simple rules of use and maintenance must also be observed (Annex B of IEC 61111).
This information is recalled on each of the mats with a marking strip. Reminder of the class color on the marking strip.
The color of the marking is carried out according to the color code of IEC 61111.
The choice of the CLASS of the mat must be determined according to the maximum nominal voltage of the network (annex A of IEC 61111).
Simple rules of use and maintenance must also be observed (Annex B of IEC 61111).
This information is recalled on each of the mats with a marking strip. Reminder of the class color on the marking strip.
The color of the marking is carried out according to the color code of IEC 61111.
/ Advantages
elastomer material with new, more scratch-resistant formulation
/ Areas of activity
Electrical distribution
Industry
Electric mobility
Civil security
Technical sheet
/ Technical specifications
Mat width (m)
:
0.6
Mat type
:
Insulating mat
Mat format
:
Mat
Mat lenght (m)
:
0.6
Mat weight (kg)
:
1.8
Max voltage AC (V)
:
1000V AC
Marking color
:
Red
Mat material
:
Elastomer
Mat material finition
:
Anti-slip two faces
Mat has to be tested
:
12 month
Used mat, mandatory test interval
:
Every 12 month
Marking tape
