/ LW07-14-39

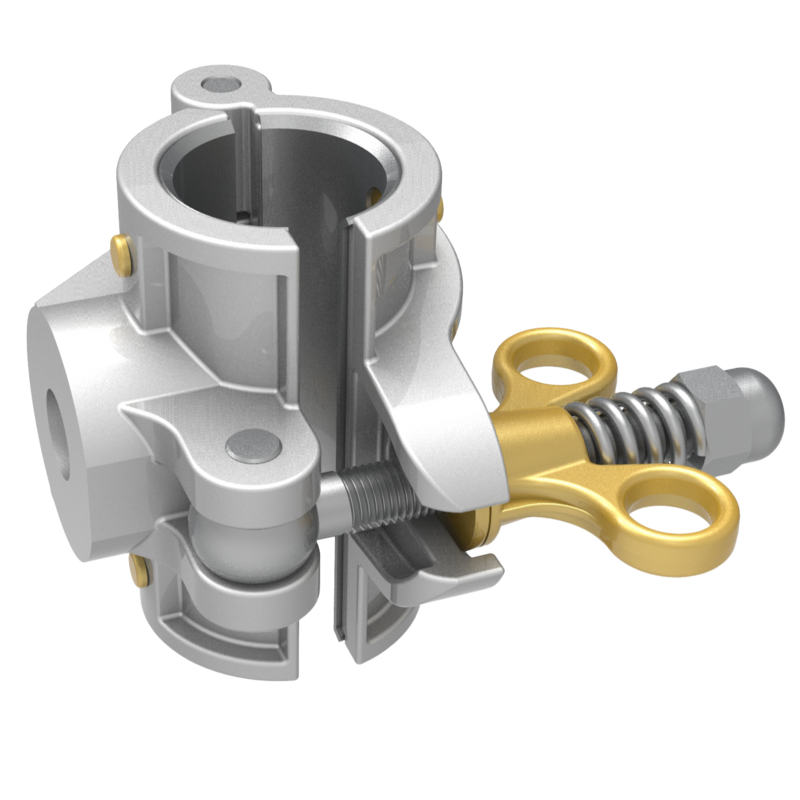

Flat pole clamp D39
See online technical sheet
/ Standards
IEC 61236
/ Use
Directly attached to the saddle, this clamps brings the conductor support stick closer to the support when required for certains interventions.
The use of a rope block is recommended for the maneuvering of the support stick Ø 64 mm (2 ½”).
It is recommended to check the tightening torque of the wingnut using a torque wrench and the wing nut socket (sold separately).
Corrosion protected metal sleeve consisting of :
• 2 shells with stainless steel fittings
• A wing nut with an anti-friction washer
Recommended tightening torque on the wing nut: 17 N.m / 12.5 lb.ft (wing nut socket sold separately)
The use of a rope block is recommended for the maneuvering of the support stick Ø 64 mm (2 ½”).
It is recommended to check the tightening torque of the wingnut using a torque wrench and the wing nut socket (sold separately).
Corrosion protected metal sleeve consisting of :
• 2 shells with stainless steel fittings
• A wing nut with an anti-friction washer
Recommended tightening torque on the wing nut: 17 N.m / 12.5 lb.ft (wing nut socket sold separately)
/ Areas of activity
Electrical distribution
Transport
Technical sheet
/ Technical specifications
Operating voltage (V)
:
HTA, HTB
Lenght (mm)
:
150
Width (mm)
:
130
Height (mm)
:
100
Pole-climbers max capacity (mm)
:
Ø39 ±1
Weight (kg)
:
0,9
Maximum working load (MWL)
:
Dans l'axe de la perche : 130daN Perpendiculaire à l'axe de la perche : 180daN
/ Associated products
| Reference | Designation | |
|---|---|---|
|
LW10-01 | Chain handling jibs for lifting beams |
