LW05-08

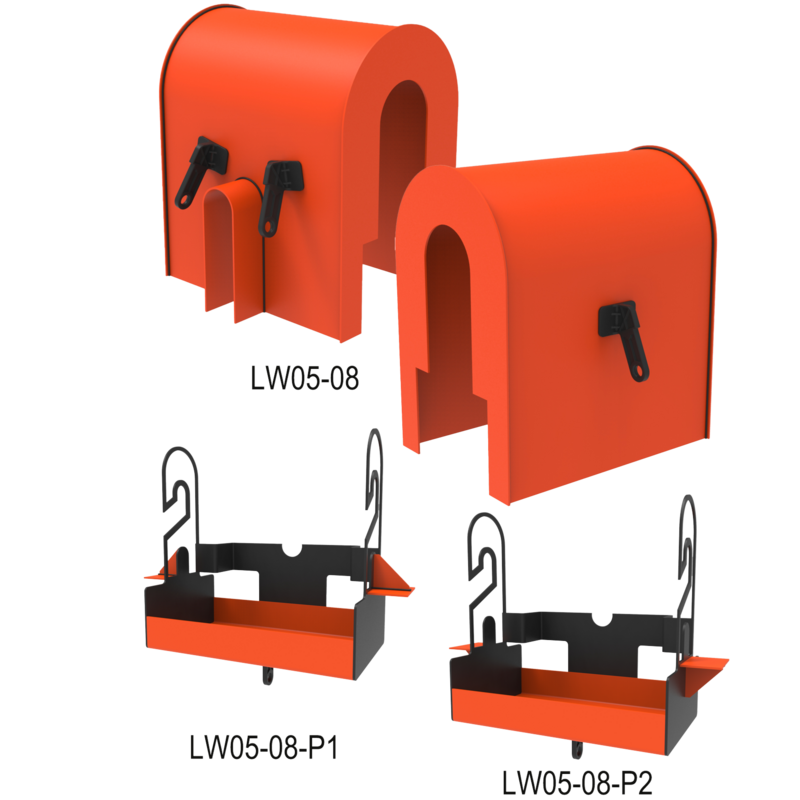

Conductor holder cover
EU Certificate
Technical sheet
/ Areas of activity
Electrical distribution
Transport
/ Accessories
LW05-05
LW05-06
TC53
/ Standards
Penta Bulletpoint IEC 61229
/ Use
The conductor holder cover is used in association with conductor covers and accessory covers, whilst being maintained on an auxiliary arm by a conductor holder.
This allows the operator to reduce the distance between his area of movement and the parts protected by the cover.
It can also be used to avoid accidental contact between phase-to-phase and phase-to-earth.
Only the model 2 door can be used with the accessory covers.
The body of the cover is made of orange plastic.
The doors are made of orange and black plastic.
The gripping tabs are made of black plastic.
Class 3
/ Technical specifications
Penta Bulletpoint Product type : Protector
Penta Bulletpoint Operating voltage (V) : HTA (1 000 V to 50 000 V)
Product reference Overall dimensions Weight (Kg) Overall length (inch) Weight (lbs) Technical sheet Quantity
LW05-08 600x450x595mm 4,4 1'11"x1'6"x1'11" 9,7
Pulse 32 Darkbg
LW05-08-P1 715x305x570mm 2,7 2'4"x1"x1'10" 6,0
Pulse 32 Darkbg
LW05-08-P2 715x305x570mm 2,7 2'4"x1"x1'10" 6,0
Pulse 32 Darkbg
