LW04-10

Insulating coupler
EU Certificate
Technical sheet
Pulse 32 Darkbg
/ Areas of activity
Electrical distribution
Transport
/ Accessories
TC53
LW14-05
/ Standards
Penta Bulletpoint IEC 60832-1
Penta Bulletpoint ASTM F711
/ Use
The Insulating coupler is used to combine two tension pullers.
Example : when replacing two dead end anchoring by an alignment at the same time.

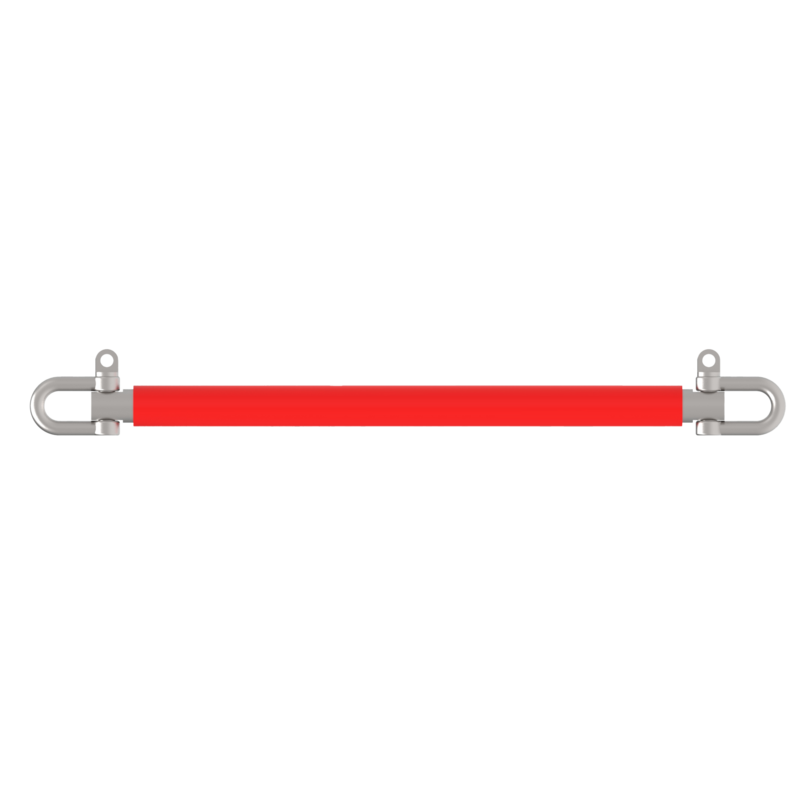

Insulating tubes, fiberglass over the foam core, fitted with a corrosion-protected metal anchor shackle at each end.
/ Technical specifications
Penta Bulletpoint Pulling undwinding devices : Pulling devices
Penta Bulletpoint Product type : Accessories
Penta Bulletpoint Operating voltage (V) : HTA (1 000 V to 50 000 V)
Penta Bulletpoint Lenght (mm) : 600
Penta Bulletpoint Width (mm) : 39
Penta Bulletpoint Height (mm) : 85
Penta Bulletpoint Weight (kg) : 1,6
Penta Bulletpoint Support material : Composite
Penta Bulletpoint CMU (daN) : Traction : 1300 daN Flexion : 200 daN/manille
Penta Bulletpoint Ø of tube(s) : 39 mm
Penta Bulletpoint Isolating length : 0,4 m
