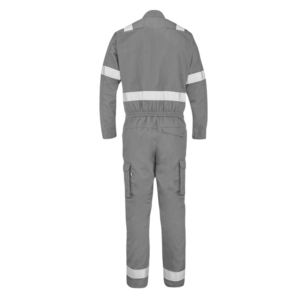

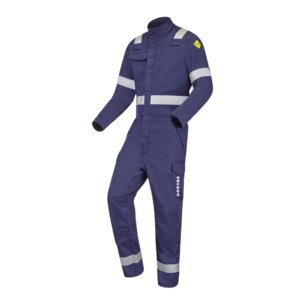

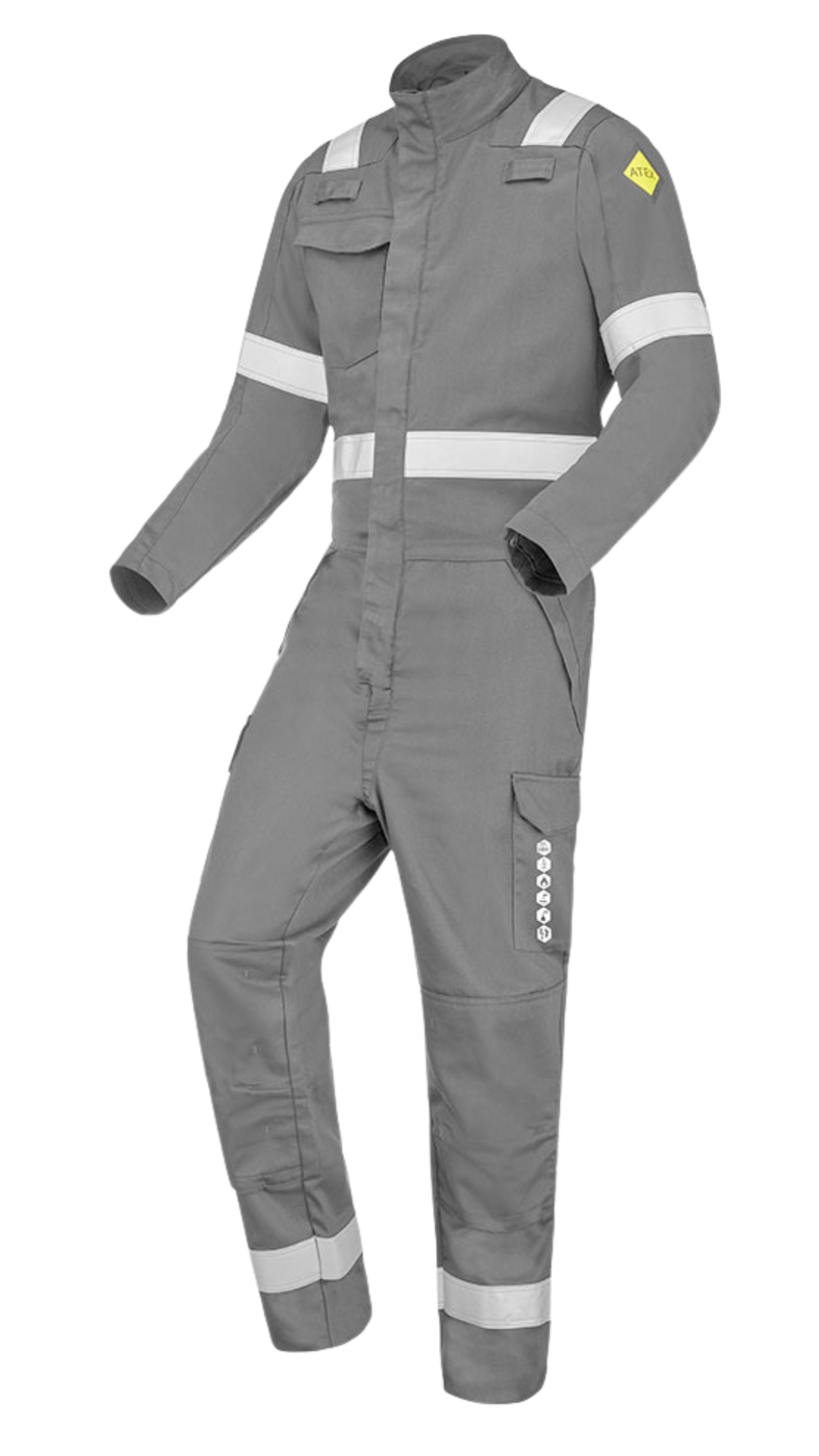

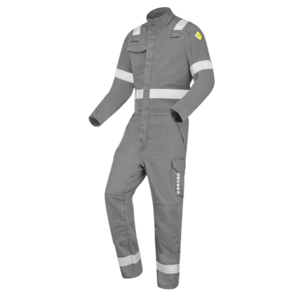

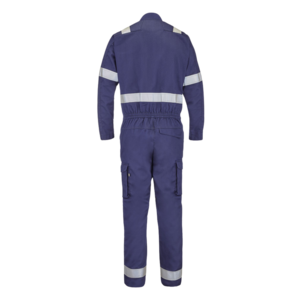

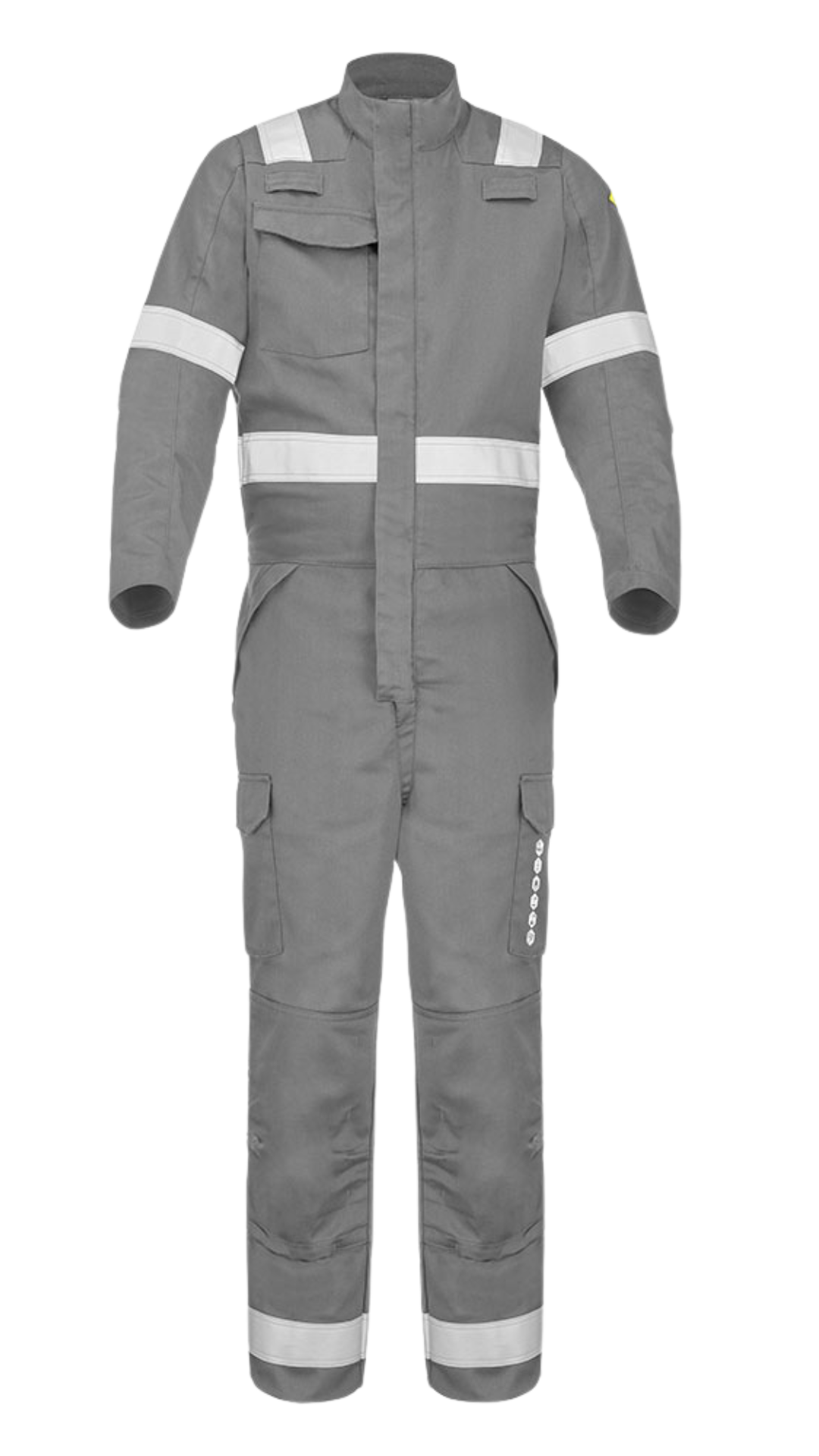

AFPRO-COM10

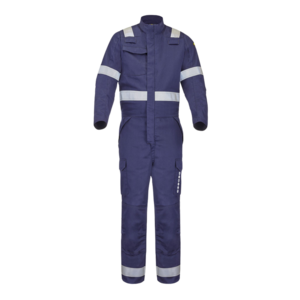

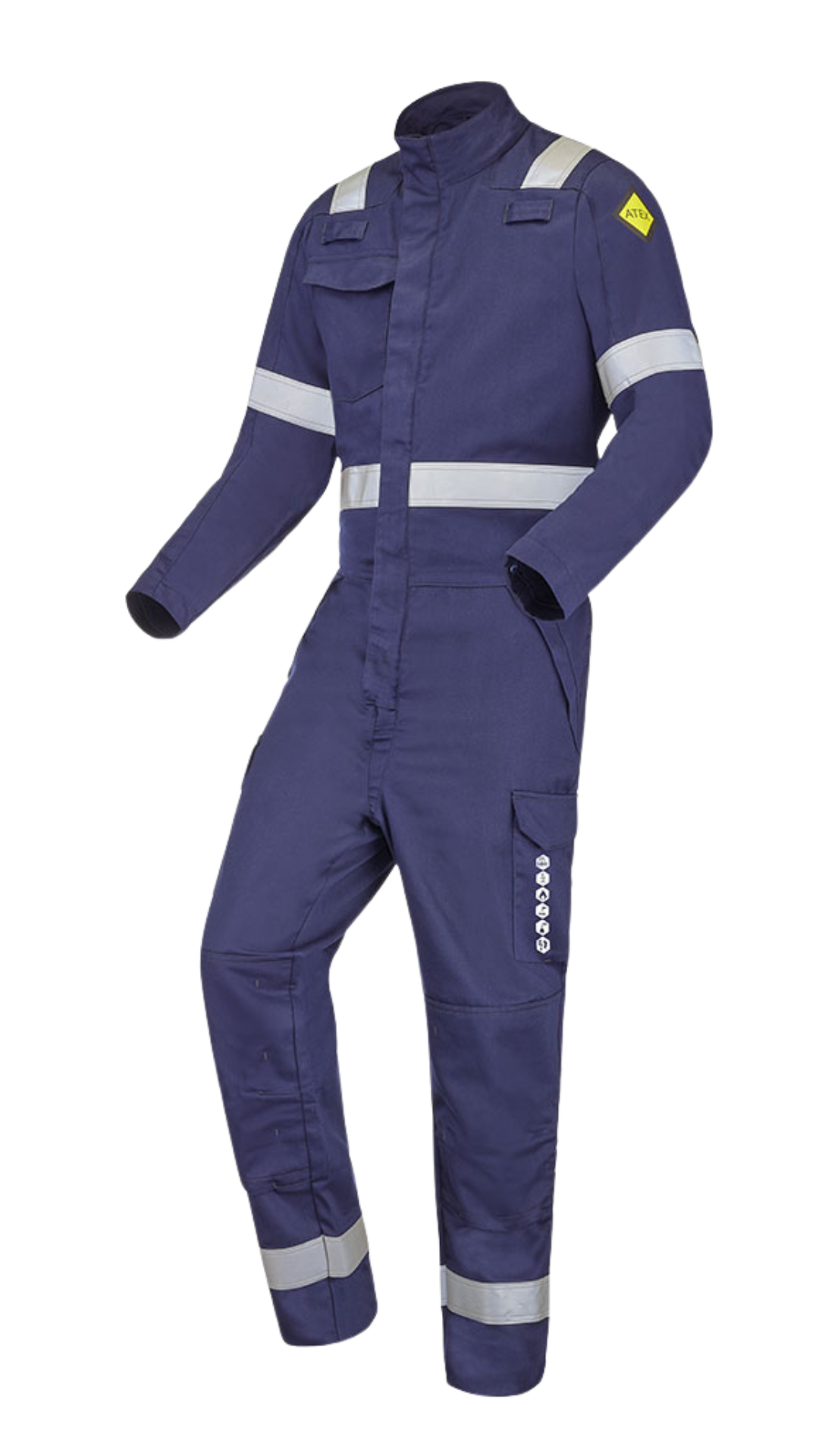

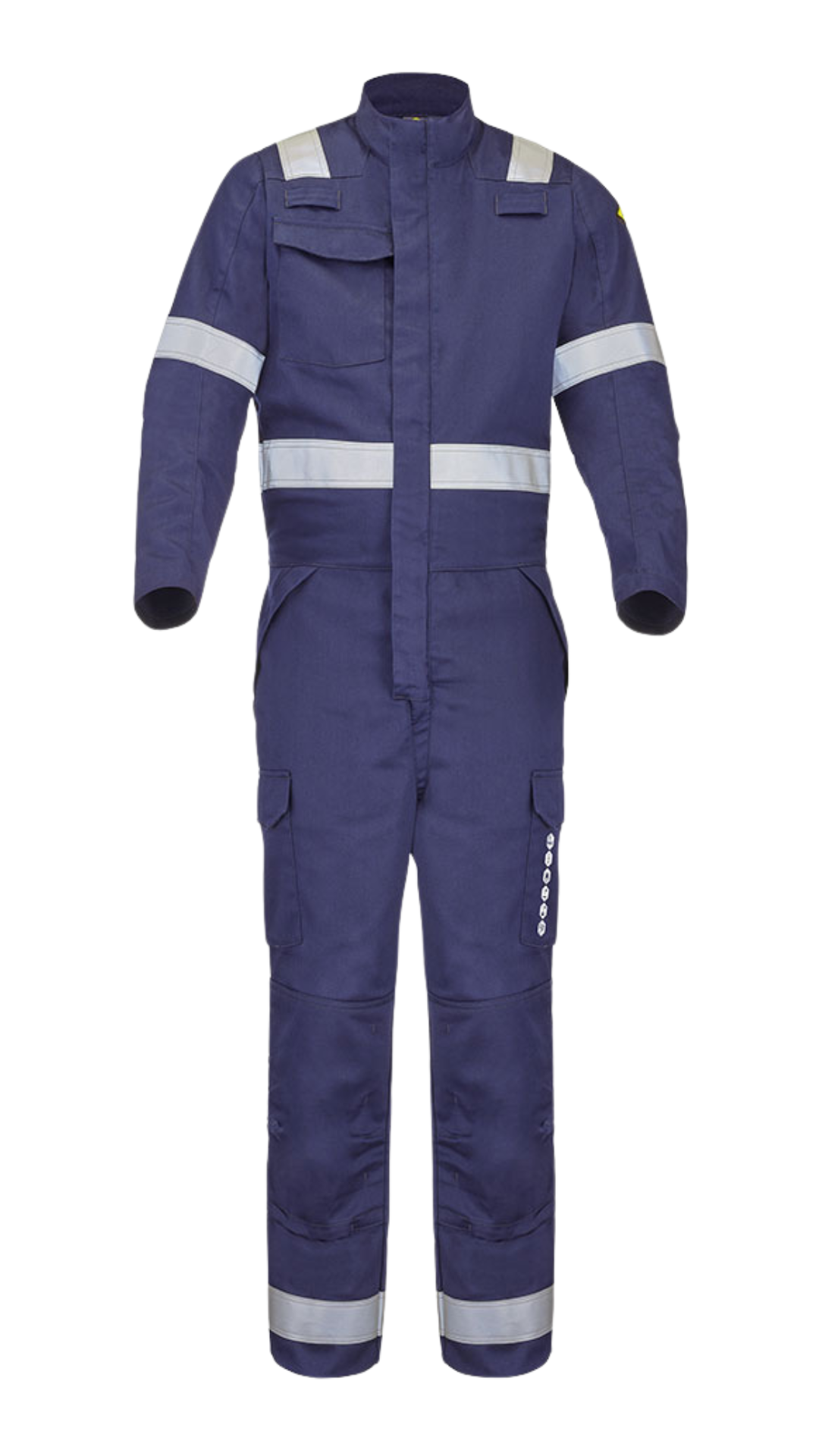

Arc Flash coverall with retroreflective tapes, APC 1 , ATPV 10 cal/cm², ELIM 9 cal/cm²

EU Certificate

Technical sheet

/ Accessories

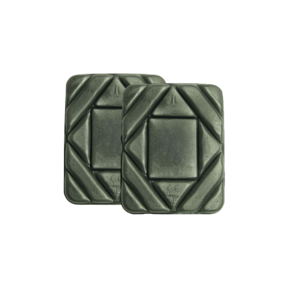

GENPOLY

/ Standards

EN ISO 13688

EN ISO 11612:2015 (Flamme and heat) : A1, B1, C1, E3, F1

EN ISO 11611:2015 (Welding protection) : Class 1

EN1149 (Electrostatic property) : EN1149-5

IEC 61482-2

EN17353:2020 : Type B3

EN14404:2004/A1:2010 (Knee protection) : Type 2

EN 14404 : Level 1

CE category : Catégory 3

/ Use

Protection against thermal effects of an electric arc.
Protection for electricians against risks associated with operation on electricity networks. For chemical industries, electricity and gas industries, refineries, automobile industries.

Advantages

Comfortable, breathable fabric for good heat exchange

ATEX zone: for use in explosive atmospheres

Dual certification using 2 test methods: BOX TEST & OPEN ARC

Double qualification according to ATPV and ELIM for OPEN ARC

No metal parts (non-magnetic)

Pictograms visible on garment

/ Technical specifications

Fastening : Zipper fastening, Flap, Snap fastener

Top Reflective piping : Chest and sleeves (3 bands)

Bottom reflective piping : Pant (1 band)

Collar style : Low blas collar

Cloth composition table : Composition - 74% cotton 25% polyester 1% antistatic fiber - 320 g/m² | Pocket: 6x Fastening - Snap fastener, Flap | 2x Passant porte-dosimètre | Colerette de marquage intérieure

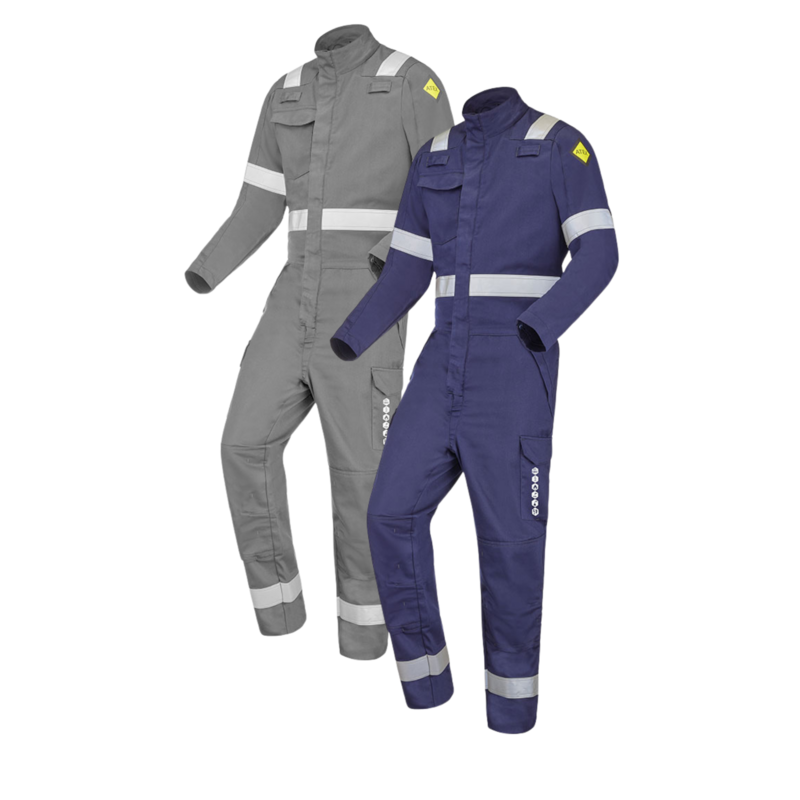

Main color	Workwear color	Technical sheet	Quantity

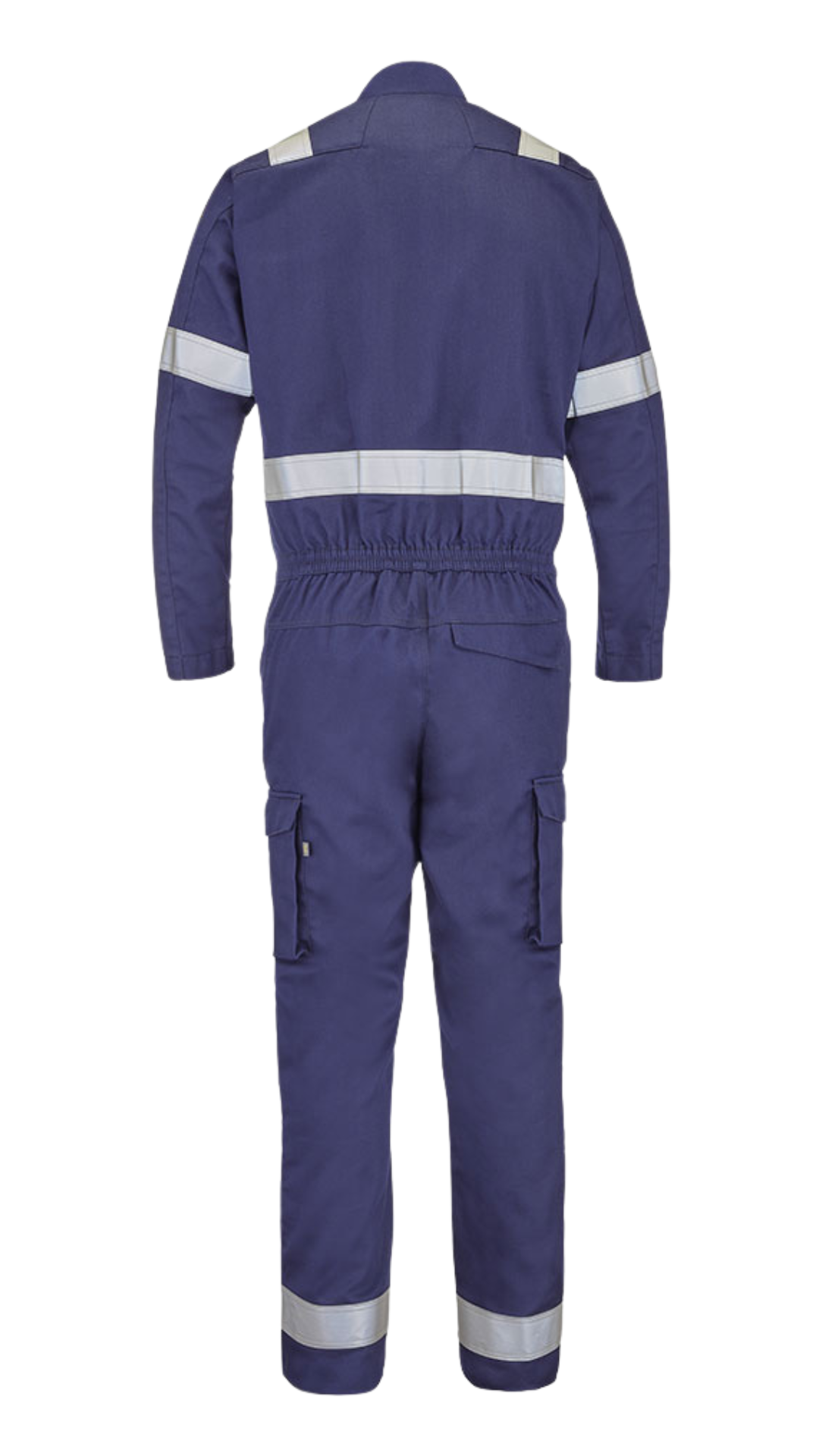

Dark blue	Dark blue

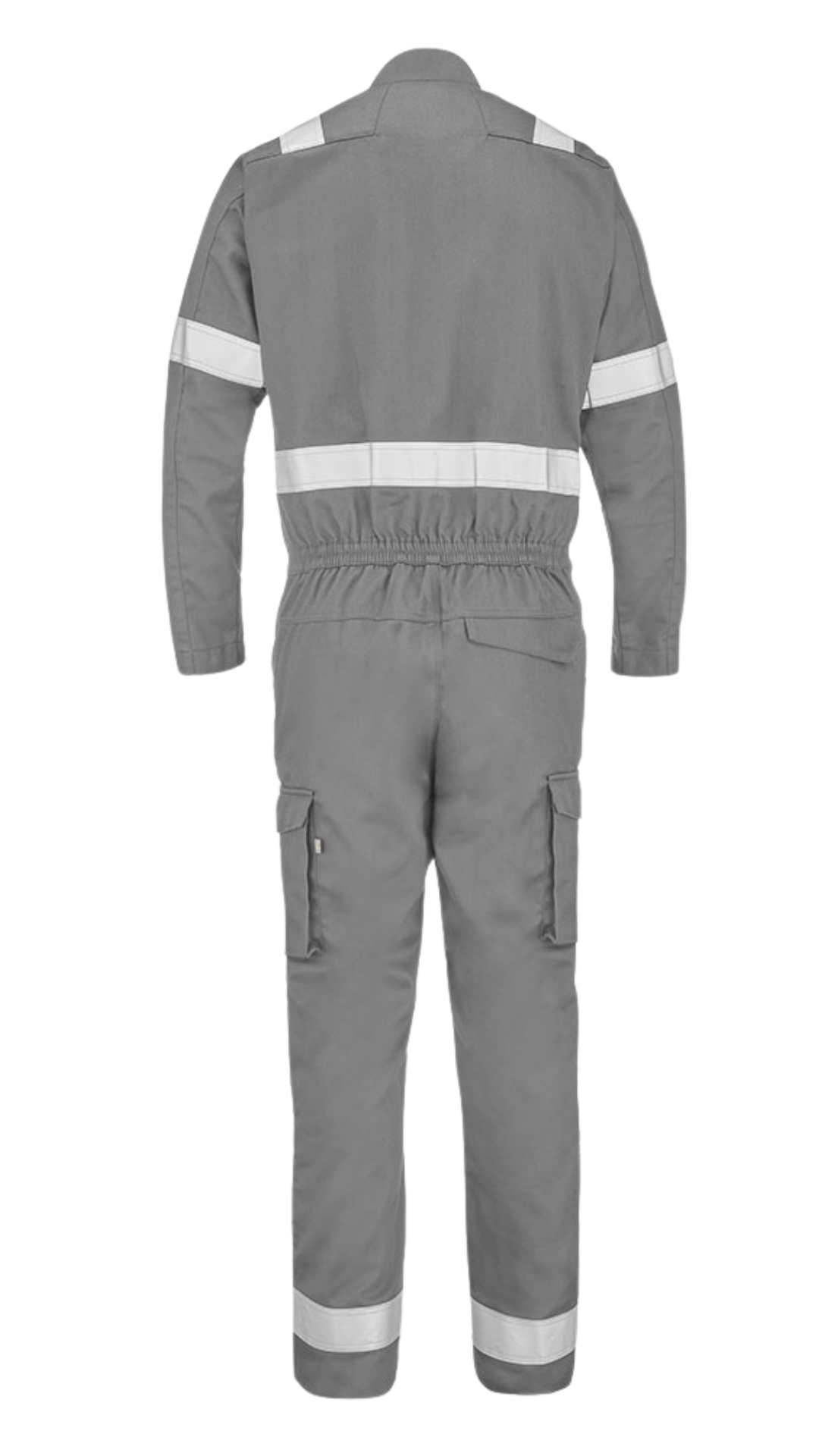

Grey	Grey
