Technical sheet
/ EFD-20137/1
1.5m Screw Type Earth Rod with Single Split Connector
See online technical sheet
/ Standards
ENA-41-21
/ Use

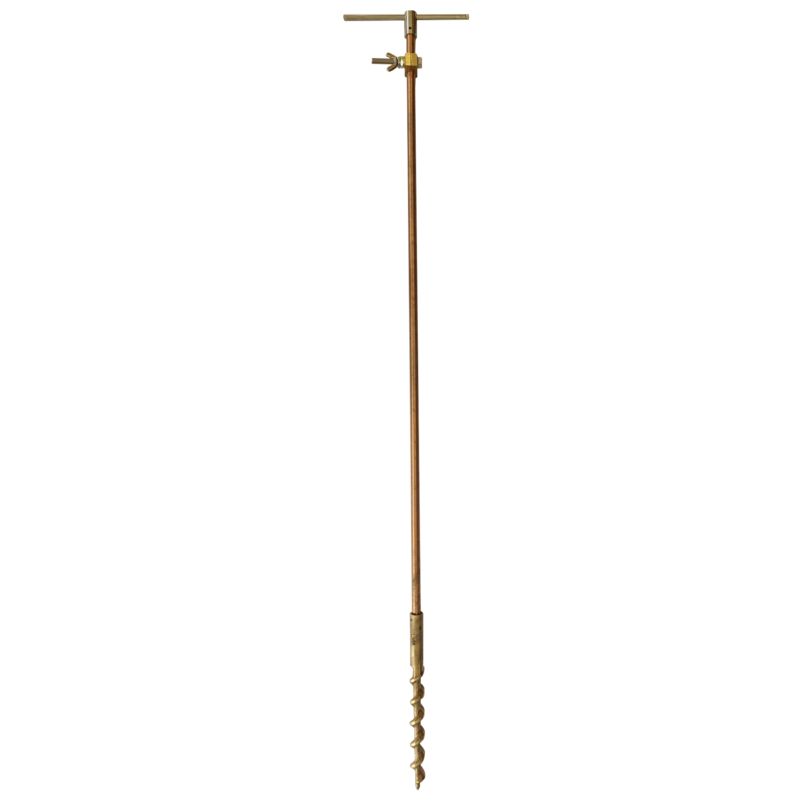

1.5m Screw Type Earth Rod x 17.2mm diameter copper-clad steel core, with stainless steel sliding tommy bar for screwing into the ground. A bronze screw profile casting is pinned to the Earth Rod for strength and provides an excellent conductive path to Earth.
Earth Rod Length : 1.5m
Split Con. Screw Length : 90mm
Handle Tommy Bar Length : 250mm
Earth rods come pre-fitted with split connectors, available in two variations; single split connector for nest applications & double split connectors to allow daisy-chaining.
Earth Rod Length : 1.5m
Split Con. Screw Length : 90mm
Handle Tommy Bar Length : 250mm
Earth rods come pre-fitted with split connectors, available in two variations; single split connector for nest applications & double split connectors to allow daisy-chaining.
/ Advantages
Solid construction to give extended service
Lasting resistance to corrosion
High tensile strength
Copper clad for low resistance
/ Areas of activity
Electrical distribution
Technical sheet
/ Technical specifications
Product specificity
:
Temporary
Product kind
:
Earthing equipment/kits
Features
:
Single Split Connector
/ Associated products
| Reference | Designation | |
|---|---|---|
|
EFD-20137/2 | 1.5m Screw Type Earth Rod with Double Split Connectors |
|
MISC-00020 | Standard Earth Nest Kit No Bag |
|
EAD-20074 | Split Connector For Earth Rod M12X90MM |
