Technical sheet
/ MISC-00020
Standard Earth Nest Kit No Bag
See online technical sheet
/ Standards
ENA-41-21
/ Use
Earths Rods can be used individually or interconnected by 50sqmm Arctic Orange Leads to create a nest. Leads can be attached using S9A Earth End clamps or Split Connectors. Configurations can be fully customised depending on customer requirements.

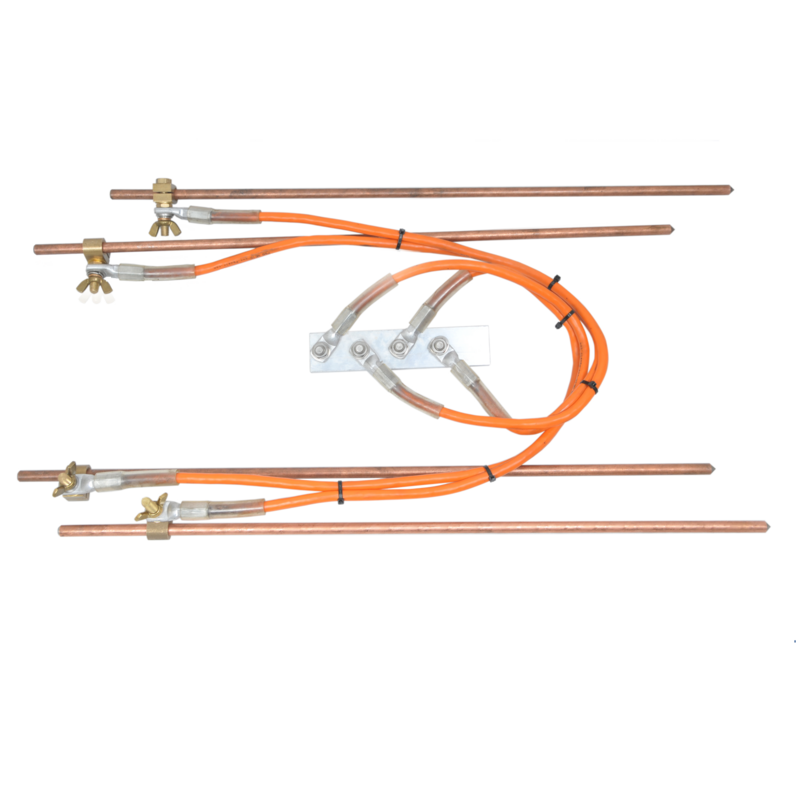

Kit consisting of x4 Earthing Rods with Split Connectors, x4 1.5m 50sqmm orange Aluflex leads and a multipoint connector.
Bag sold separately.
Kit consisting of x4 Earthing Rods with Split Connectors, x4 1.5m 50sqmm orange Aluflex leads and a multipoint connector.
Bag sold separately.
/ Advantages
Lasting resistance to corrosion
High tensile strength
Available in standard lengths 850mm
Copper clad for low resistance
Other lengths available (1,000mm and 1,200mm)
/ Areas of activity
Electrical distribution
Technical sheet
/ Technical specifications
Product specificity
:
Temporary
Product kind
:
Earthing equipment/kits
Field of use (environment)
:
Distribution
Cable material
:
Aluminium
Cable isolation type
:
PVC
Phase cable number
:
4
Phase(s) cable cross-section (mm²)
:
50
Phase(s) cable length (m)
:
1.5
/ Associated products
| Reference | Designation | |
|---|---|---|
|
EFD-20137/2 | 1.5m Screw Type Earth Rod with Double Split Connectors |
|
EBD-20070 | 850mm Earth Rod ST/COP |
|
EFD-20137/1 | 1.5m Screw Type Earth Rod with Single Split Connector |
|
EAD-20074 | Split Connector For Earth Rod M12X90MM |
