Technical sheet
/ EBD-20070
850mm Earth Rod ST/COP
See online technical sheet
/ Standards
ENA-41-21
/ Use

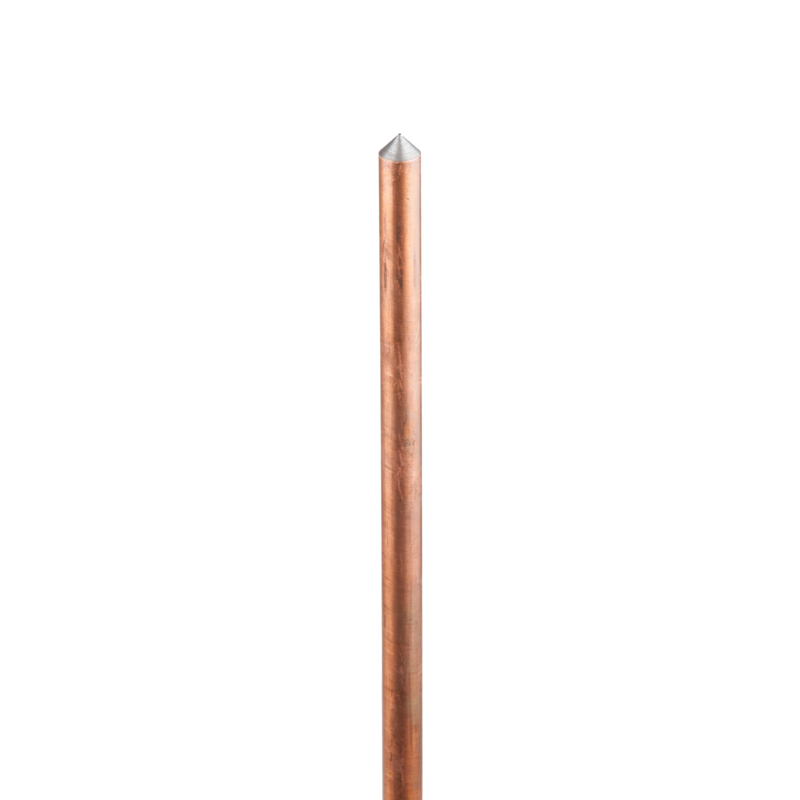

Copper clad steel spiked earth rod 850mm long x 14.3mm O/D. A high tensile strength, low carbon steel core clad with 99.95% pure copper, thickness 0.25mm.
/ Advantages
Lasting resistance to corrosion
High tensile strength
Available in standard lengths 850mm
Copper clad for low resistance
Other lengths available (1,000mm and 1,200mm)
/ Areas of activity
Electrical distribution
Technical sheet
/ Technical specifications
Product specificity
:
Temporary
Product kind
:
Earthing equipment/kits
Field of use (environment)
:
Distribution
/ Products contained in the kit
| Reference | Designation | |
|---|---|---|
|
MISC-00169 | DLE2/B Earthing Kit |
|
MISC-00020 | Standard Earth Nest Kit No Bag |
/ Associated products
| Reference | Designation | |
|---|---|---|
|
|
MISC-00020 | Standard Earth Nest Kit No Bag |
|
EAD-20074 | Split Connector For Earth Rod M12X90MM |
