LW04-07

Tension puller

EU Certificate

Technical sheet

/ Areas of activity

Electrical distribution

Transport

/ Accessories

LW04-09-CR1

LW04-09-CR2

LW04-09-CO

LW04-09-CN

LW04-09-CPF

LW04-09-MA

LW08-11-PM

LW08-11-GM

LW12-09

/ Use

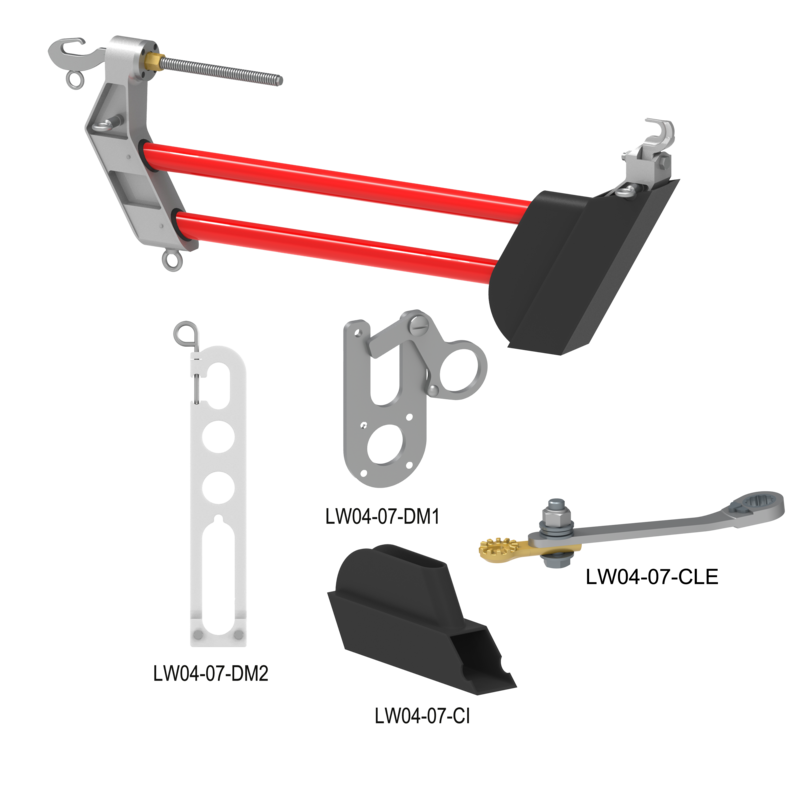

Equipped with a hook, the tension puller, used in association with a come along clamp, is used to take up the mechanical tension of a conductor by means of the screw jack.
It allows, the replacement of an anchor chain whose insulators have a diameter inferior of 240 mm.
The screw jack is operated by means of 24x27mm open-end ratchet.

/ Technical specifications

Pulling undwinding devices : Pulling devices

Product type : Tirant

Operating voltage (V) : HTA (1 000 V to 50 000 V)

CMU (daN) : 1100

Maximum conductor cross-section : 148 mm²

Ø of tube(s) : 39 mm

Product reference	Lenght	Width	Height	Weight (kg)
LW04-07	1115 mm	355 mm	105 mm	7
LW04-07-DM1	125 mm	110 mm	25 mm	0,3
LW04-07-CI	370 mm	170 mm	85 mm	0,5
LW04-07-DM2	405 mm	95 mm	30 mm	0,25
LW04-07-CLE	295 mm	47 mm	60 mm	1,2
